Product List
NEXEM provides various capacity types and can accept almost load level of automotive application.
Feature
- Small while large capacity
- Flux tight housing suitable for automatic soldering dip
- Semi-customizable for use in all types or circuitry, including
- Washable plastic case (sealed type)
- Lineup of miniature twin relays also available
- Reflow soldering type available
- RoHS compliance
Product List
| Type of Relay | Mounting Space (mm × mm) |
Contact Form | Contact Ratings | Coil Specifications | Download | ||
|---|---|---|---|---|---|---|---|
| Nominal load capacity | Nominal Operating Power
(mW) |
Nominal Voltage
(V) |
|||||
|
EX1 | 8.0 × 12.6 | 1c | 14VDC-25A | 900 , 1100 | 12 | Data Sheet |
|
EX2 | 12.6 × 14.1 | 1c × 2 | 14VDC-25A | 900 , 1100 | 12 | Data Sheet |
|

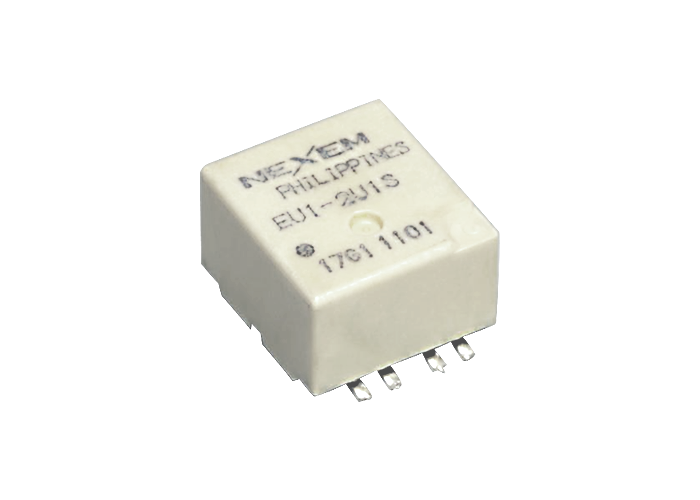

EU1 | 14.5 (12.7) X 11.5 | 1c | 14VDC-25A | 960 | 12 | Data Sheet |
|
EU2 | 14.5 (12.7) × 21.0 | 1c × 2 | 14VDC-25A | 960 , 1100 | 12 | Data Sheet |
|
HX1 | 9.7 × 14.6 |
1c 1a |
16VDC-30A | 640 | 12 | Data Sheet |
|
EL1 | 12.9 × 14.9 | 1c | 14VDC-40A | 640 | 12 | Data Sheet |
|
EM1 | 12.9 × 14.9 | 1u | 14VDC-40A | 640 , 900 | 12 | Data Sheet |
|
EM1K | 12.9 × 14.9 |
1u | 14VDC-40A
14VDC-50A |
640 | 12 | Data Sheet |
|
EM1KT | 12.9 x 14.9 | 1u | 14VDC-40A | 1800 | 12 | Data Sheet |
|
EP1K | 16.7 × 15.1 | 1c | 14VDC-25A | 640 | 12 | Data Sheet |
|
ET1 | 13.3 × 14.5 | 1c | 14VDC-20A | 640 | 12 | Data Sheet |
|
ET2 | 13.3 × 22.5 | 1c × 2 | 14VDC-20A | 640 | 12 | Data Sheet |
|
EP1 | 16.7 × 15.1 | 1c | 14VDC-25A | 480 , 640 | 12 | Data Sheet |
|
EP2 | 16.7 × 24.3 | 1c × 2 | 14VDC-25A | 480 , 640 | 12 | Data Sheet |
※The figures in ( ) shows maximum size of cover of relay.
Whether the relay fits or not depends on the conditions of usage.
Please use Relays after confirming the detailed conditions of relay usage.
Please don't hesitate to contact us with any further questions.
Selection from Application
Whether the relay fits or not depends on the conditions of usage.
Please use Relays after confirming the detailed conditions of relay usage.
Please don't hesitate to contact us with any further questions.
Driving System
Selection from Current Capacity
Whether the relay fits or not depends on the conditions of usage.
Please use Relays after confirming the detailed conditions of relay usage.
Please don't hesitate to contact us with any further questions.
Twin Relay
Strong point of Twin Relay
- Cost Reduction・Miniaturization -
Single Relay×2 ⇒ Twin Relay×120％ cost down / 15％ reduction in Mounting space!
The twin relay developed by EMD for the first time in the world has two relays casing in one. An application that reverses the direction of current, such as forward and reverse rotation of an actuator. Also, such as a combination of other applications that are not always energized. Focusing on the application, we have realized miniaturization, cost reduction, and easy mounting.
Case Study
Forward/Reverse rotation motor control
Individual application control
Available Applications
Large current
Strong point of large current of PCB relay
- Miniaturization・Weight saving -
What is attracting attention as a trend in the in-vehicle industry these days is the miniaturization and weight reduction of modules. In this trend, the replacement of PCB relays from plug-in relays in junction boxes (J-Boxes) / power distributions (PDUs) is also accelerating. EMD adds a lineup of high-current PCB relays that meet this need, and proposes solutions to customers' problems.
Comparison between PCB & Plug-in Relay
Achieves miniaturization with
PCB Relay
- ＊Printed Circuit board relay (PCB): A type of relay that is mounted directly on the printed circuit board
- ＊Plugin relay: A type of relay that can be inserted and removed from the socket
Case Study
Safety System
Driving System
HX1, EM1, EM1K are suitable relay for below applications (30-60A)
